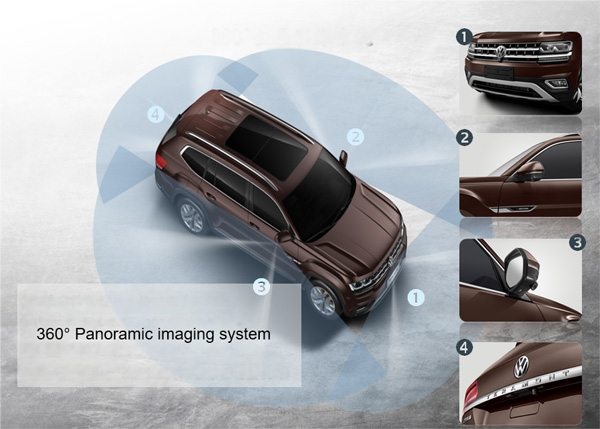

360° Panoramic imaging system
Date of publication: 2025-01-11  [GoBack]
1. Features of panoramic reverse image function

MQB platform Match with the entire vehicle system
Non destructive installation Original factory verified connector, no wire breakage, no damage
seamless splicing Upgraded splicing technology to present softer images
Inductive reverse assist driving
Cooperate with the bus steering wheel; Mobile reverse wiring harness
2D and 3D presentation
High end design presents 2D and 3D function switching
360 ° touch image switching Human computer interface upgrade, touch 360 ° browsing of surrounding environment


2. Function Description of Panoramic Reverse Camera

1. 2D surround view
Combine the images captured by four fisheye cameras installed at the front, rear, and sides of the vehicle into a 2D panoramic view from a bird's-eye view< br />
2. 3D surround view
Reuse the original four cameras, use image processing technology and viewpoint transformation algorithms to synthesize a BD panoramic view with a wider viewing angle and a longer visible distance< br />
3. Dynamic reverse trajectory
Based on the steering wheel information of the vehicle, provide real-time reverse trajectory lines and provide users with 2D bird's-eye view parking guidance.

4. Lane departure warning
By performing lane recognition and motion analysis in a 2D view, warnings can be issued when vehicles deviate from the lane< br />
5. Parking Guide
Integrate parallel arm vehicle guidance and vertical parking guidance to provide users with a better experience< br />
6. Blind spot monitoring

Integrate blind spot monitoring function, which can identify traffic conditions 5 meters behind the vehicle and issue warnings when moving objects approach.


7. Recorder function

Four cameras work simultaneously to record 360 ° images.


PS: This feature extension is currently under development, please stay tuned!!!


3. Panoramic Reverse Image 3D Panoramic Surround View






IV. 360 degree panoramic adaptation models

Name
Model
Part number
360 panoramic imaging system (B MPV, HD)
B  MPV (Weiran)
ZVD911010A
360 panoramic imaging system (Tiguan L Coupe, HD)
Tiguan L Coupe (Tiguan X)
ZVR911010B
360 panoramic imaging system (A  SUVe,  HD)
A  SUVe  (ID.4 X)
ZVI911010A
360 panoramic imaging system (Lounge SUVe, HD)
Lounge  SUVe  (ID.6 X)
ZVK911010A
360 panoramic imaging system (Tiguan L, HD)
Tiguan L
ZVR911010A
360 panoramic imaging system (Tiguan L, HD) PA
New & nbsp; Tiguan LPA  & nbsp; (Tiguan L PA)
ZVR911010C
360 panoramic imaging system standard definition
Teramont
ZVB911010
360 panoramic imaging system (Teramont, HD)
Teramont
ZVB911010A
